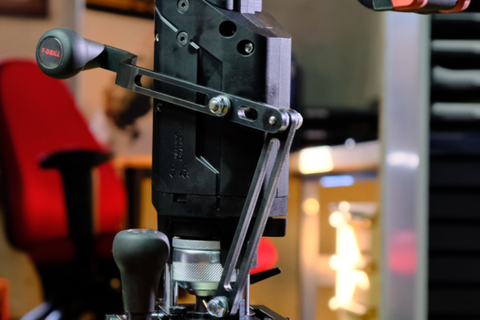

T-DRILL T-54c SST Portable Collaring Machine
A cordless portable collaring machine for producing 17-54 mm branch outlets in stainless-steel and steel run tubes.
The T-DRILL T-54c SST forms precise collars directly in stainless-steel or steel run tubes for branch connections. It is intended for construction, renovation, maintenance, repair, water treatment, HVACR, and process-piping work where portability and controlled tee-joint preparation matter. Forming the outlet from the run tube can remove the need for a separate tee fitting and reduce the connection to one branch joint.
Selection should be confirmed against the branch outside diameter, run-tube diameter, wall thickness, material, joint method, access, production volume, and required tooling. Optional ring clamps extend the supported run-tube range. Logamweld can help review the application and confirm the appropriate machine, forming pins, pilot cutters, trimming tools, and accessories.
Key Specifications
- Process
- Portable tube collaring
- Collar size
- 17-54 mm (3/8-2 1/8 in OD)
- Run-tube size
- 26.9-114.3 mm; up to 219.1 mm with optional ring clamps
- Maximum wall thickness
- 3.05 mm / SCH10; limits vary by diameter
- Materials
- Stainless steel and steel
- Typical cycle time
- 2-3 minutes
- Spindle speed
- 0-550/55 rpm
- Supply
- 18 V DC cordless system
- Machine dimensions
- 116 x 360 x 350 mm
- Weight
- 5.72 kg
