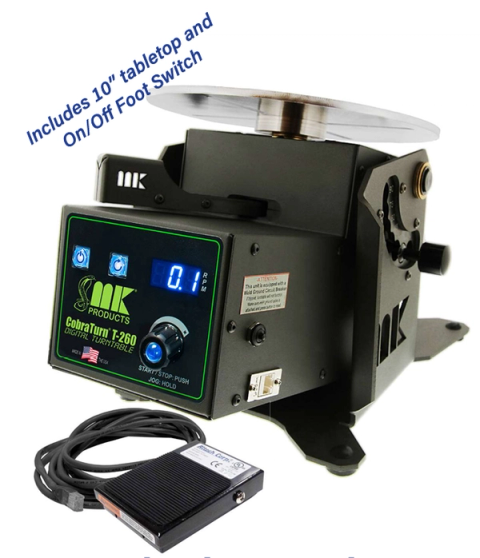

CobraTurn T-260 Heavy-Duty Welding Turntable
A heavy-duty rotary welding turntable with a 260 lb horizontal load capacity, digital speed control, and adjustable tilt for controlled part positioning.
The MK Products CobraTurn T-260 is designed to rotate and position parts smoothly during manual or automated welding. Its 10-inch tabletop supports balanced loads up to 260 lb horizontally or 130 lb vertically when centred within the manufacturer's stated limit. Digital speed control, start, stop and jog functions help operators establish repeatable travel around circular workpieces.
The tabletop tilts from 0 to 90 degrees in 15-degree increments. A de-clutch release allows free tabletop rotation during setup, while the centre shaft supports gas purge connections. Confirm the workpiece mass, centre of gravity, mounting method, required rotational speed, welding current, purge arrangement, foot-control requirements, and electrical supply before selection.
Key Specifications
- Application
- Heavy-duty rotary welding and part positioning
- Horizontal load capacity
- 260 lb / 118 kg balanced load
- Vertical load capacity
- 130 lb / 59 kg, centred within the stated limit
- Table diameter
- 10 in / 254 mm
- Tilt
- 0-90 degrees in 15-degree increments
- Speed range
- 0.1-6 rpm
- Ground capacity
- 400 A at 60% duty cycle
- Input power
- 120 VAC, 50/60 Hz
