MK Products

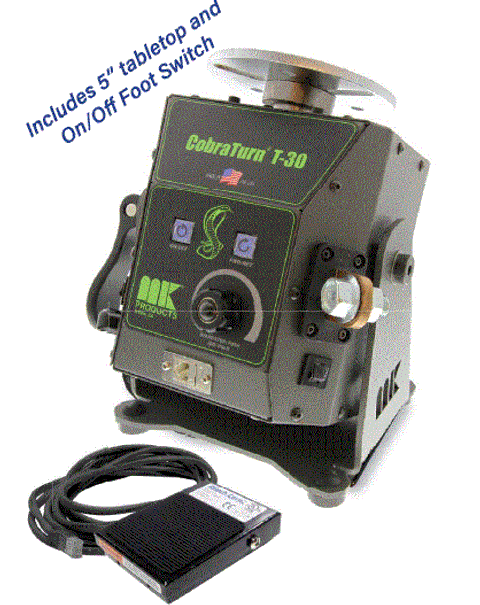

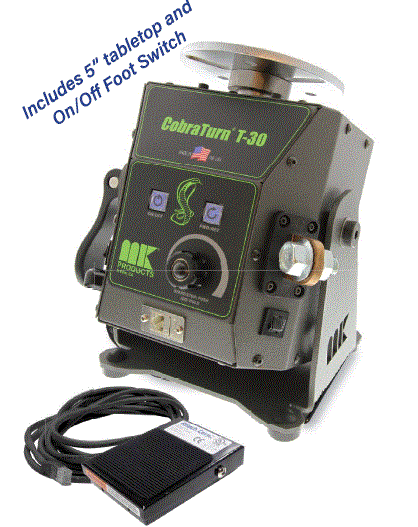

CobraTurn T-30 Welding Turntable
A compact rotary welding turntable for lightweight parts, with a 30 lb horizontal load capacity, adjustable tilt, and controlled rotation.
The MK Products CobraTurn T-30 is a compact rotary welding turntable for lightweight components, tube flanges, small assemblies, and similar precision work. Smooth, controlled rotation helps an operator maintain a steadier torch position and travel speed around circular joints.
The 5-inch tabletop supports balanced loads up to 30 lb horizontally or 15 lb vertically. Its adjustable illuminated control panel provides start, stop and jog functions, and the table can tilt from 0 to 90 degrees. Confirm the part weight and centre of gravity, fixture and chuck requirements, desired rotational speed, welding current, mounting arrangement, foot control, and available electrical supply before selection.
Key Specifications
- Application
- Lightweight rotary welding and part positioning
- Horizontal load capacity
- 30 lb / 13.6 kg balanced load
- Vertical load capacity
- 15 lb / 6.8 kg
- Table diameter
- 5 in / 127 mm
- Tilt
- 0-90 degrees
- Speed range
- 0.4-6 rpm
- Ground capacity
- 400 A at 60% duty cycle
- Input power
- 120 VAC, 50/60 Hz
