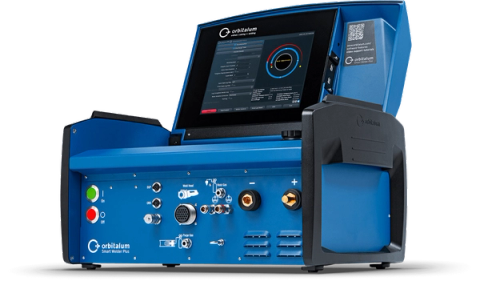

Orbitalum Smart Welder Plus
An orbital TIG welding power and control source with 3-180 A DC output, repeatable weld programs, documentation, and optional connected-production functions.
Orbitalum Smart Welder Plus provides programmable control for repeatable orbital TIG tube welding. It supports controlled welding current, weld-head rotation, shielding and purge-gas handling, optional wire feed, program storage, and weld documentation from one transportable power source.
A complete system also requires a compatible Orbitalum weld head and application-specific accessories. Selection should account for tube material, outside diameter, wall thickness, cooling, shielding and purge gas, wire-feed requirements, documentation, connectivity, and available site power. Logamweld can help confirm the complete configuration before purchase.
Key Specifications
- Input power
- 1 x 110-230 V AC, 50/60 Hz
- Welding current
- 3-180 A DC in 0.1 A increments
- Current reproducibility
- +/-0.5%
- Duty cycle
- 110 A at 100%; 140 A at 60%; 180 A at 30%
- Maximum connected load
- 3.6 kVA at 180 A
- Welding voltage
- 10-20 V DC
- Maximum no-load voltage
- 70 V DC
- Weld-head and wire-feed drive
- 24 V DC PWM, maximum 1.5 A each
- Protection
- IP23S
- Machine weight
- 26 kg without coolant
- Connectivity
- Optional LAN, IoT, and VNC upgrade
- System options
- Cooling, cart, switching unit, remote control, scanner, oxygen meter, and manual torch
