Orbitalum tube preparation and orbital welding systems for Malaysian projects.
A repeatable orbital welding result starts before the arc. Orbitalum combines portable tube cutting and beveling, tube-end preparation, welding power sources, weld heads, and supporting accessories for controlled process-piping work. Kumpulan Logamweld helps Malaysian project teams review the tube material, diameter, wall thickness, joint, workspace, preparation method, welding requirement, purging, and documentation needs as one connected system.
Featured Orbitalum equipmentOrbitalum Orbital Cutting System
How to plan an Orbitalum tube-processing system.
Treat cutting, end preparation, fit-up, purging, welding, and process documentation as one workflow. The right configuration depends on the tube, joint, quality requirement, available access, production environment, and records required by the project.
- 01
Application and quality requirement
Define the piping service, cleanliness level, joint standard, acceptance criteria, and whether the work involves high-purity process lines, production piping, maintenance, or heat-exchanger applications.
- 02
Tube material and dimensions
Record the material, outside diameter, wall thickness, dimensional tolerance, and complete size range. These details guide the machine, clamping, tooling, and weld-head selection.
- 03
Cut and end preparation
Confirm whether the joint needs a square cut, burr-free facing, bevel, or other preparation. Consistent tube ends and fit-up are fundamental to a repeatable automated weld.
- 04
Joint type and available access
Review the joint geometry, clearance around the tube, straight length, nearby fittings, and whether an enclosed, open, or tube-to-tube-sheet weld head is appropriate.
- 05
Welding control and records
Define the required welding-current range, program control, operator access, cooling, connectivity, printout, log, and traceability expectations before selecting a power source.
- 06
Purging and complete-system needs
Plan the weld head, clamping inserts, cables, cooling, tungsten preparation, purge arrangement, residual-oxygen measurement, tooling, consumables, and site support together.
Start with the process and application.
Orbital Cutting and Beveling
Portable machines for controlled, square cutting and beveling across suitable tube and pipe materials, selected according to diameter, wall, preparation, and site conditions.
Explore category Orbital FacingOrbital Facing
Orbitalum RPG pipe-facing machines for cold, square, burr-free tube preparation and repeatable fit-up before orbital or manual welding.
Explore category Orbital WeldingOrbital Welding
Smart Welder Plus power and process control, compatible weld heads, cooling, purge, and supporting accessories for repeatable tube and process-piping applications.
Explore categoryExplore Orbitalum products.

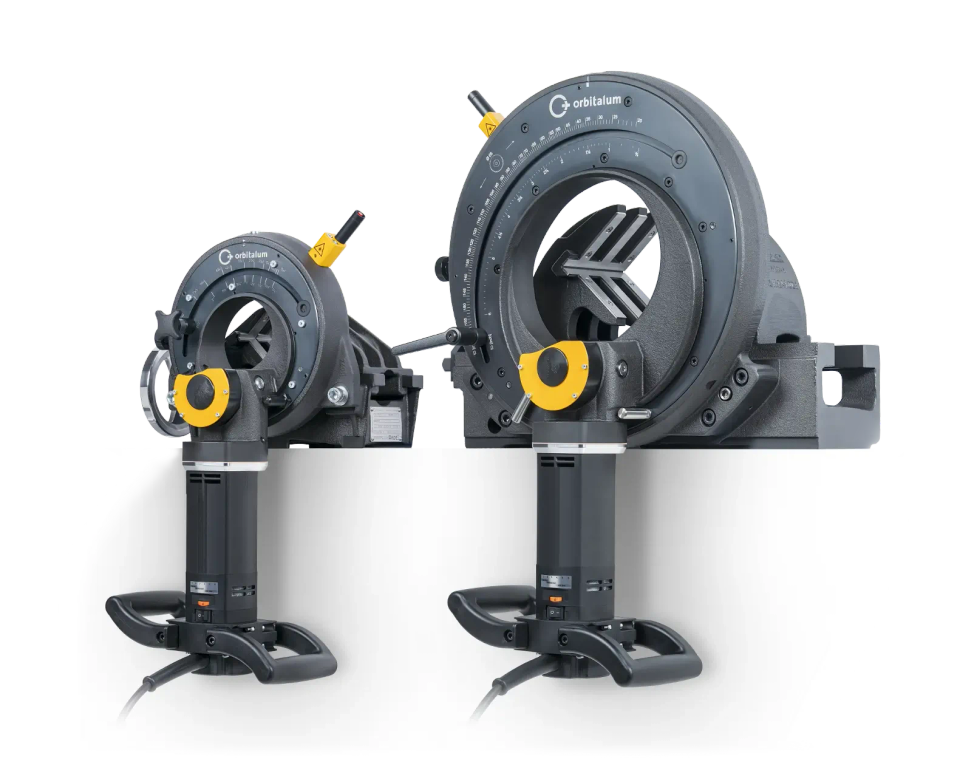

Orbital CuttingOrbitalum Orbital Cutting SystemPrecision orbital cutting equipment for clean, repeatable tube and pipe preparation.
View product

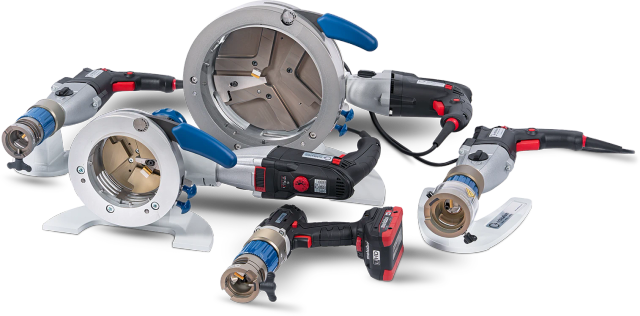

Orbital FacingOrbitalum RPG Pipe Facing Machine SeriesA pipe-facing machine family for cold, square and burr-free preparation of tube outside diameters from 3 to 219.1 mm.
View product

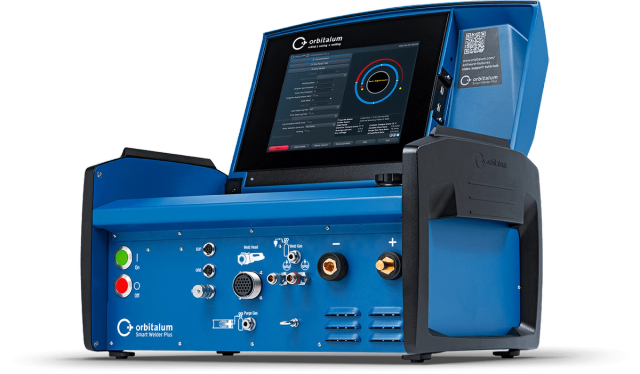

Orbital WeldingOrbitalum Smart Welder PlusAn orbital TIG welding power and control source with 3-180 A DC output, repeatable weld programs, documentation, and optional connected-production functions.
View productPlan the full Orbitalum workflow from tube cut to weld record.
Reliable orbital work depends on preparation, fit-up, welding control, accessories, and operating procedure working together. Share the piping application, tube schedule, joint details, workspace, expected throughput, quality criteria, and documentation requirement so Logamweld can help narrow the suitable equipment route.
- 01Tube material, diameter, and wall-thickness review
- 02Cutting, squaring, beveling, and fit-up planning
- 03Power-source and weld-head configuration guidance
- 04Clamping, tooling, cooling, purge, and accessory review
- 05Technical-document, training, calibration, and service enquiries
- 06Shah Alam and Penang project enquiry support
Orbitalum equipment FAQs.
Practical information to prepare a more useful product enquiry.
What is the difference between orbital cutting, weld preparation, and orbital welding?
Orbital cutting creates the required tube or pipe cut, weld preparation produces the final face or bevel for fit-up, and orbital welding controls the electrode movement and welding parameters around the joint. They are separate stages, but their accuracy and compatibility affect the same finished weld.
What information should I provide for an Orbitalum equipment recommendation?
Provide the application, tube material, outside diameter, wall thickness, size range, joint design, available clearance, required preparation, welding process, input power, production volume, purge arrangement, quality criteria, and documentation or traceability needs.
How do I choose between enclosed and open orbital weld heads?
The decision depends on tube diameter, wall thickness, joint design, filler-wire requirement, available clearance, material, cooling, and application. Enclosed and open weld heads serve different working ranges, so the tube and joint details should be checked against the selected head and power source.
Which industries use Orbitalum tube-processing and welding systems?
Orbitalum publishes applications across semiconductor, pharmaceutical and chemical processing, food and beverage, aerospace, boilers, and heat exchangers. Equipment suitability still depends on the specific piping material, dimensions, quality requirement, environment, and approved project procedure.
Can Orbitalum welding systems support welding programs and process records?
Selected Orbitalum power-source configurations provide functions for managing welding programs and recording process information. The exact logging, printing, connectivity, and documentation capability must be confirmed for the proposed model and project requirement.
Can Logamweld confirm Orbitalum equipment availability, training, calibration, and support?
Yes. Contact Logamweld with the application and equipment details to confirm the proposed model, accessories, current availability, lead time, technical documents, training, calibration, diagnostics, or service scope. Website listings do not guarantee immediate stock.
