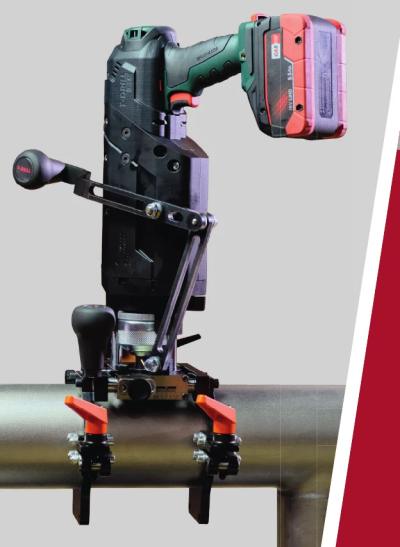

A portable option for site and maintenance work
The brochure identifies construction, renovation, maintenance and process-industry work as applications for T-54c SST. Portability can be useful where a fixed workstation is impractical, but access around the pipe and the clamping requirement still need to be reviewed.
- Show where the branch will be formed and any surrounding obstruction.
- Identify whether the pipe can be moved or must remain in position.
- Include the proposed joining method and the workpiece material.
The three steps and the next joining operation
Pilot-hole milling creates the opening, collaring forms the branch outlet and trimming prepares its end. The branch connection then needs the joining procedure specified for the component or installation.
For an enquiry, distinguish between forming the outlet and supplying any downstream welding equipment. A portable collaring-machine package should be reviewed against the intended preparation, forming tools and clamping requirements rather than assumed to cover the whole installation process.
Check branch diameter and wall thickness together
The supplied chart relates run-tube diameter, branch size and maximum stainless-steel wall thickness. It includes a specific restriction above 51 mm branch OD, where the maximum wall thickness is given as 2.0 mm. Apply the full chart rather than selecting from the maximum branch size alone.
The chart also identifies larger run-tube arrangements using optional ring clamps. Those options should be specified and confirmed for the actual pipe instead of assumed to be part of every package.
Define the portable package and existing equipment
State whether the enquiry concerns a new setup, additional tools or use alongside equipment already owned. Include the exact machine model when discussing clamps or a capacity-expanding attachment. Similar model names do not establish compatibility by themselves.

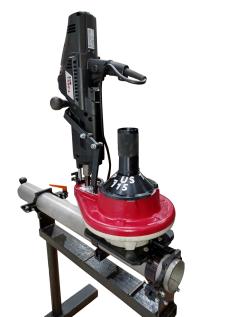

For repeated manifold work, a feed-table arrangement may also be relevant. Compare that workflow with direct portable use, based on outlet quantity, pipe length and the way the component will be positioned.
Prepare the local site or workshop enquiry
Send Logamweld the stainless-steel grade, tube OD, wall thickness and branch sizes, together with a drawing or photos showing working access. Include the Malaysian site location and required timeline.
Use WhatsApp, email or phone according to your preference. Ask the Shah Alam team to confirm the machine, tooling, clamps and any requested accessories for the quotation, including compatibility with the equipment already in use.
Questions before you choose T-54c SST
Can every 54 mm branch be formed at the same wall thickness?
No. The chart relates branch size, run-tube size and thickness, and the brochure has a separate limit above 51 mm branch OD. Submit the full combination for review.
Can I assume an existing T-54 accessory fits T-54c SST?
Provide the exact machine and accessory identification for confirmation. Similar names and nominal sizes do not establish that a particular tool or attachment is compatible.
