Assess the component, not just the outlet diameter

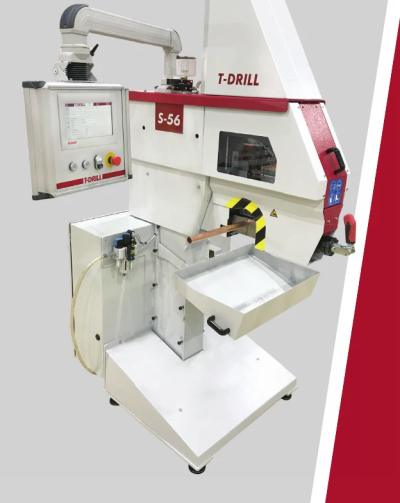

The S-56 brochure describes uses in HVAC components, heat-exchanger manufacture and automotive tube work. These are relevant selection scenarios when a fabricator is reviewing tubular components with branch connections. The actual machine choice still starts with the part geometry, material and required joint.
- Include bends, straight sections and the location of each outlet.
- Identify the intended brazed or welded connection.
- Show any restriction around the tube that could affect clamping or tool access.
Choose the preparation sequence around the joint
Different joint requirements call for different preparation. A drilling/collaring sequence and a sequence including trimming should not be treated as interchangeable. The supplied brochure also distinguishes round and elliptical pilot-hole arrangements and their associated capacities.
Before comparing packages, state the finished collar and joint geometry. This keeps the discussion focused on the intended connection rather than assuming every S-56 setup produces the same outlet preparation.
Programming and feeding options for repeat work
The manufacturer describes a colour touch panel, adjustable machining parameters and motion-profile settings. Feeding tables and automated arrangements can also be selected around manifold production. These features should be reviewed against the way components will be positioned and repeated in your workshop.
For mixed production, list the material and size changes between batches. The machine, tooling, clamps and feeding arrangement need to be considered together when planning changeovers.
When to compare S-56 with S-28 or MultiFlex

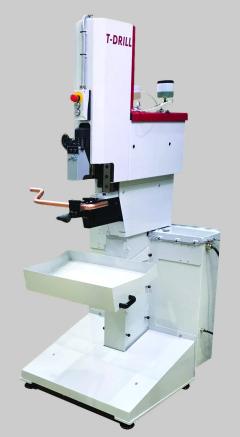

A tightly bent tube may justify reviewing the slimmer S-28, which was developed for geometries where S-56 access is unsuitable. An enquiry involving several operations or outlet sizes can also justify considering S-56 MultiFlex.
These comparisons are most useful when based on the same component drawing. Include the full tube envelope, material, joint preparation and expected quantity so differences in access and workflow can be assessed alongside capacity.
Prepare an S-56 enquiry for Malaysian production
Send Logamweld the component drawing and a list of required outlet sizes. Include material grade, wall thickness, tube lengths and the quantities you expect to produce. For an existing workshop, add the available working area and preferred loading method.
Use the Shah Alam contact route to discuss the proposed configuration. Ask for confirmation of the applicable capacity chart, tools, clamps and any feeding options included in the quotation.
Questions before you choose S-56
Why does pilot-hole shape matter when reviewing capacity?
The supplied brochure gives different capacity information for round and elliptical pilot-hole arrangements. Match the hole preparation and joint method before applying a quoted maximum collar diameter.
Can S-56 be selected for a bent tube from its diameter alone?
The drawing also needs to establish access and clamping around the outlet. Show the bend radius, nearby bends and the required outlet orientation when submitting the enquiry.
